Efficient Air Duct Heaters for HVAC

Air duct heaters are widely used for air conditioning in industrial processes. The power of the heater depends on the air outlet temperature (up to 700℃) and the air flow rate. To save installation space and simplify installation, smaller pipe heaters can be installed in series into one large unit.

    Product Features

    cdhj-solution-ico-1

    Advanced heating elements

    Thick-walled chromium alloy tubular heating elements are adopted, which have essential performance advantages over traditional open coil elements.

    cdhj-solution-ico-1

    Strong environmental adaptability

    The air duct heater can effectively protect against corrosive air environments. In industrial environments containing acidic and alkaline gases, dust and other pollutants, special materials and protective designs can prevent the heating elements from being corroded and extend the service life of the equipment.

    cdhj-solution-ico-1

    Customized safety design

    In response to the specific requirements of different industrial scenarios, air duct heaters can be professionally customized. Under high-voltage conditions, the safe operation of the equipment is ensured through measures such as strengthening insulation design and adding high-voltage components. For hazardous locations such as petroleum and chemical industries where there are risks of flammability and explosion, explosion-proof technologies such as explosion-proof enclosures and sealed designs are adopted, and relevant safety standards are strictly followed to prevent safety accidents such as explosions caused by electric sparks, providing reliable heating guarantees for high-risk working environments.

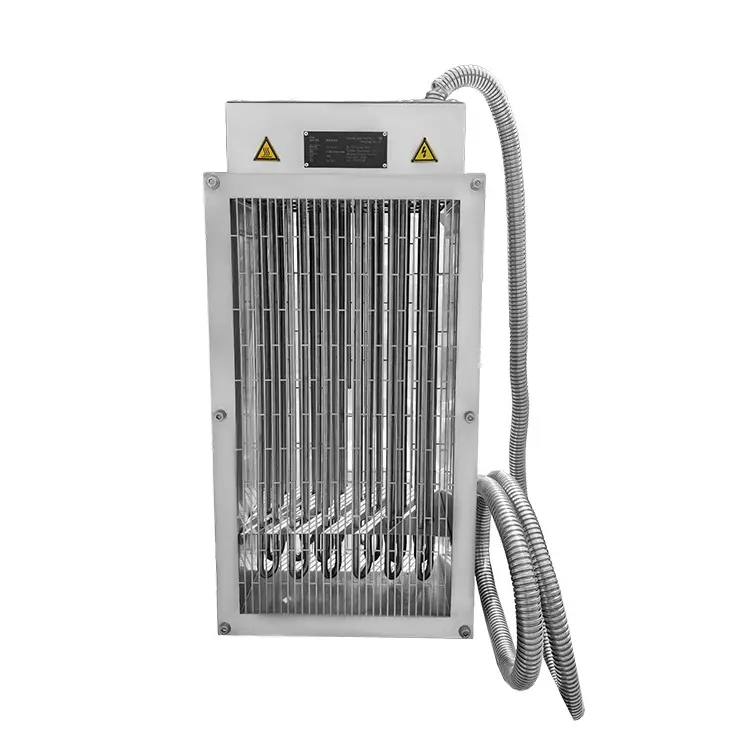

    Air Duct Heater (1)

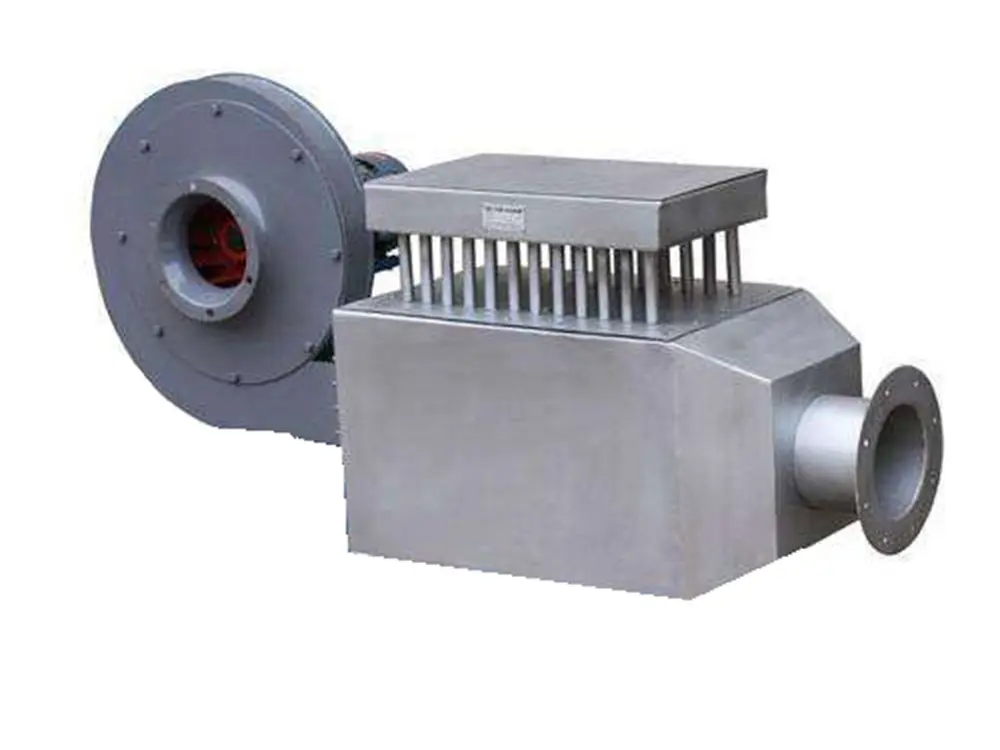

    Air Duct Heater (3)

    Application

    Air duct heaters play a crucial role in industrial production and are widely used in multiple industries such as chemical engineering, power, metallurgy, textile, and food processing. In the chemical industry, it can be used for preheating the air before the reaction vessel, providing suitable temperature conditions for chemical reactions. In the power industry, it is often used for heating the combustion-supporting air in power station boilers to improve combustion efficiency. In the textile printing and dyeing process, high-temperature hot air can be provided for the drying process to accelerate the drying of fabrics. In the field of food processing, it can be used in baking, drying and other links to ensure the quality of food processing.

    Technical Parameter

    Voltage

    230V/400V(China), 277V/480V(Germany)

    Power Density

    Max. 6.2w/cm2

    Air Velocity

    Min. 61m/min

    Element Sheath Temperature

    Max. 760℃

    Housing Material

    Stainless steel

    Insulation Material

    High pressure magnesium oxide powder

    Heating element

    1200℃ Cr20Ni80
